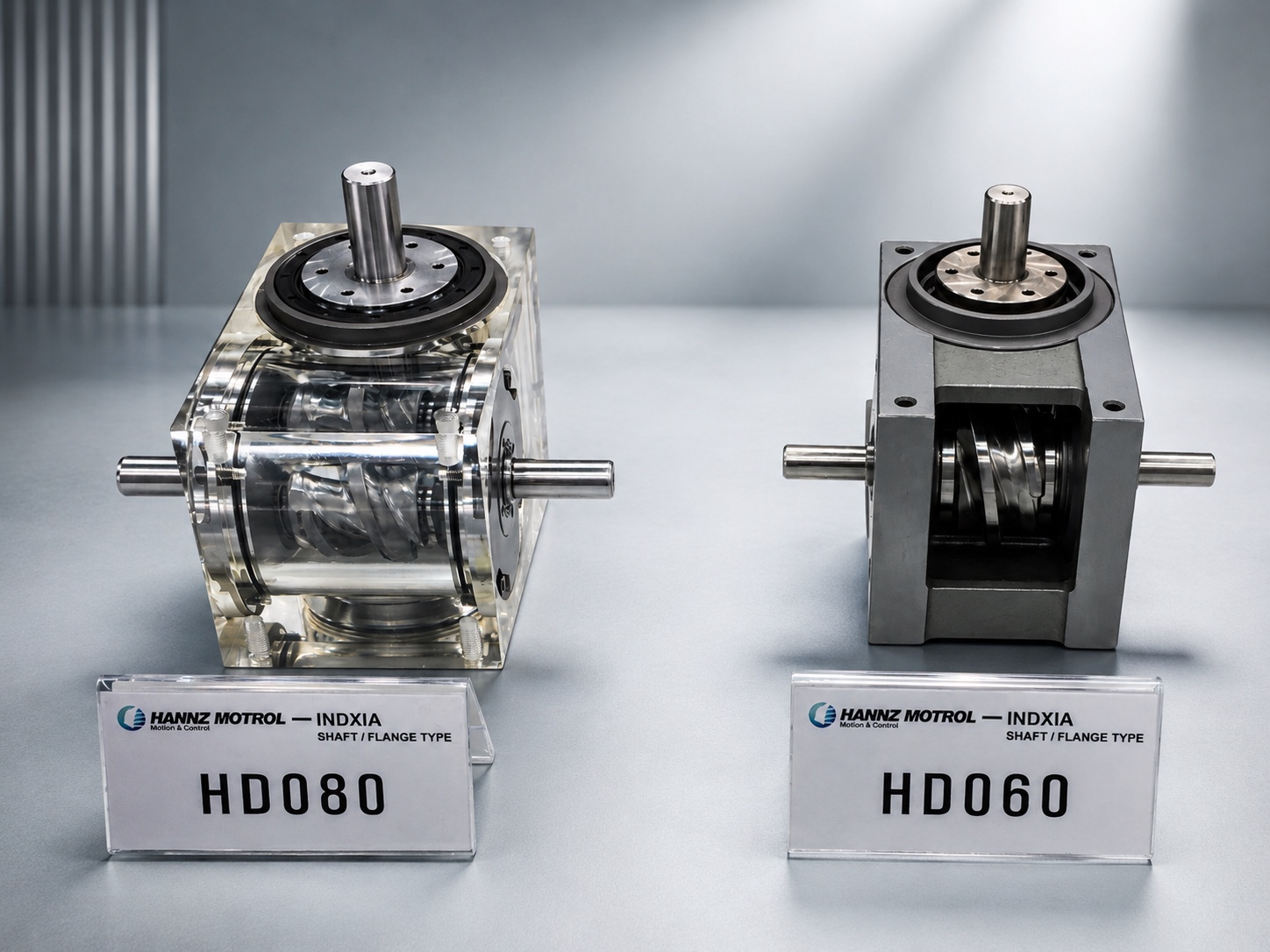

INDXIA HD Series

High Speed. Accurate. Flexible

Description

The HD Series indexer produces precise and rigid performance at an exceptional value within its class. It is available from small to mid- size models (shaft-to-shaft distance: 45 to 170mm), suitable for high speed and low number of stops equipment (0~700 rpm, up to 48 stops depending on number of dwells). Furthermore, it is available in many different mounting and installation positions.

Specifications

• Sizes: 45, 60, 70, 80, 110, 140 and 170mm (input shaft to output shaft distance)
• D-Indexing Motions: 2 to 32 stops
• E-Oscillating Motions: 5, 10, 15, 30, 45, 60 and 90 degrees
• R-Constant Rotation Reducer: 3, 4, 5, 6, 8, 10 and 12:1 ratio cam
• Input Speed: 0-700 RPM

Enquiry

How to order?

Step 1: Click here to download INDXIA HD Series Sizing Form (For Rotary Table / Linear Conveyor Applications)

Step 2: Fill in the form completely based on your application

Step 3: Email a scanned copy to sshauto@singnet.com.sg

Step 4: Our sales team will contact you within 1-3 working days


Related Products

HA Series (Hollow Flanged Type)
HA Series Indexing Drive

HP Series (Parallel Gear Type)

HP Series Indexing Drive
