INDXIA HA Series

High Torque. Accurate. Compact

Description

The HA Series indexer produces high torque and rigid performance suitable for rotary table/ indexing dial applications. It is available from small to large size models (shaft-to-shaft distance: 70 to 230mm). The re-designed compact housing and hollow flanged output allow machines to be built around the HA series indexer easily.


Specifications

• Sizes: 70, 90, 110, 150, 190 and 230mm (input shaft to output shaft distance)
• Indexing Motions: 2 to 32 stops
• Input Speed: 0-200 RPM
• Options: Geared Motor with Inverter, Torque Limiter
• Output Torque: Download Torque Capacity Table

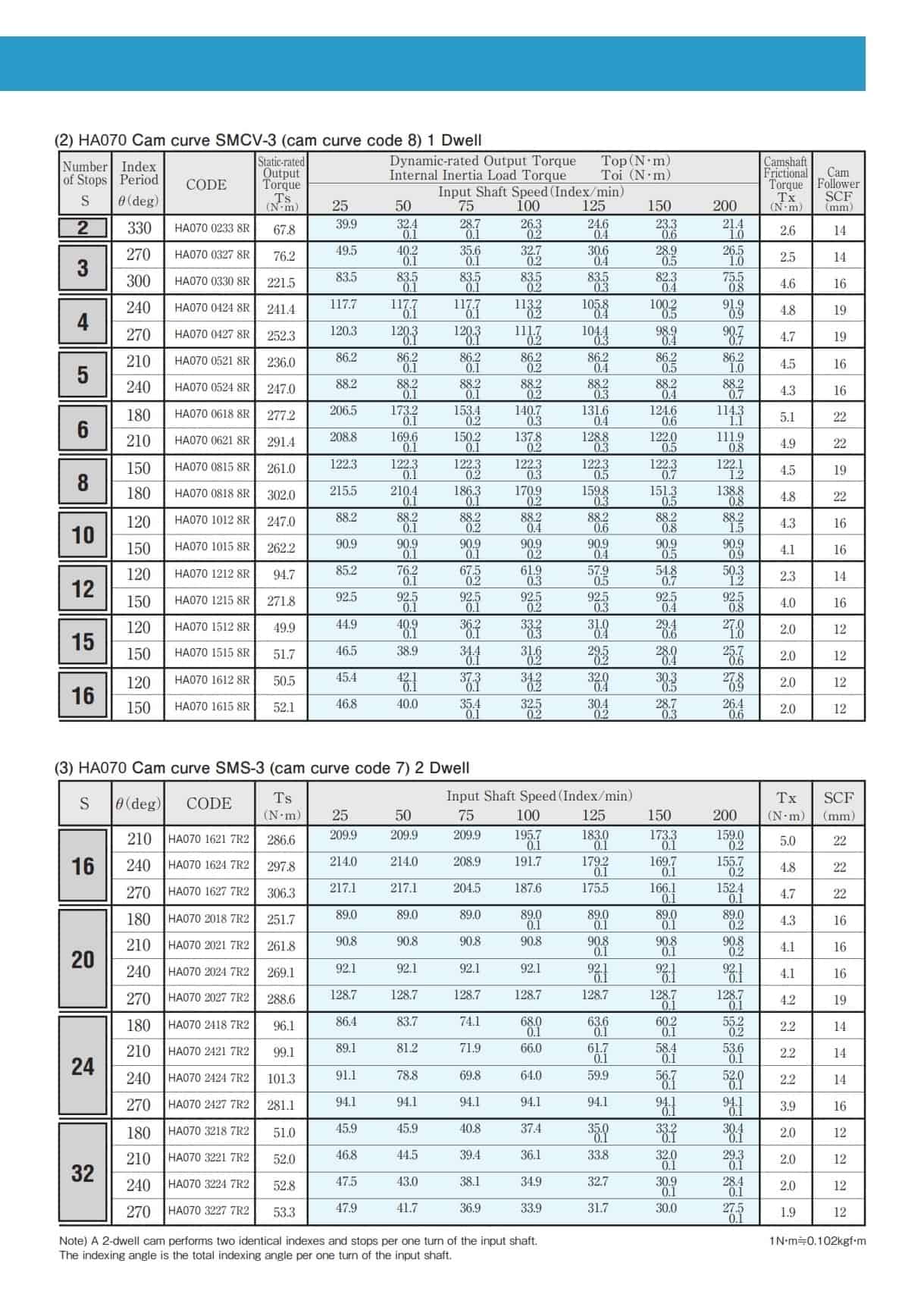

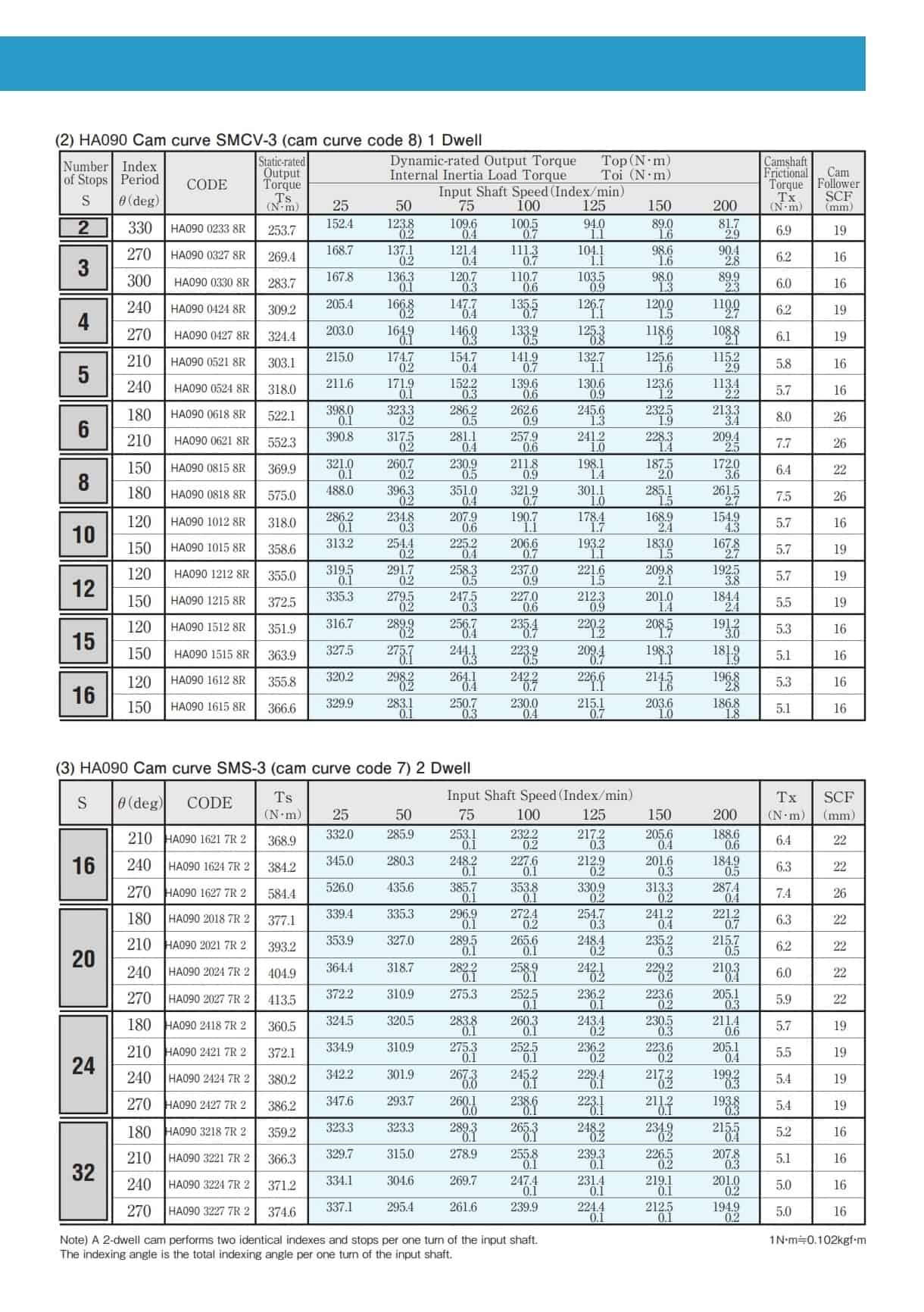

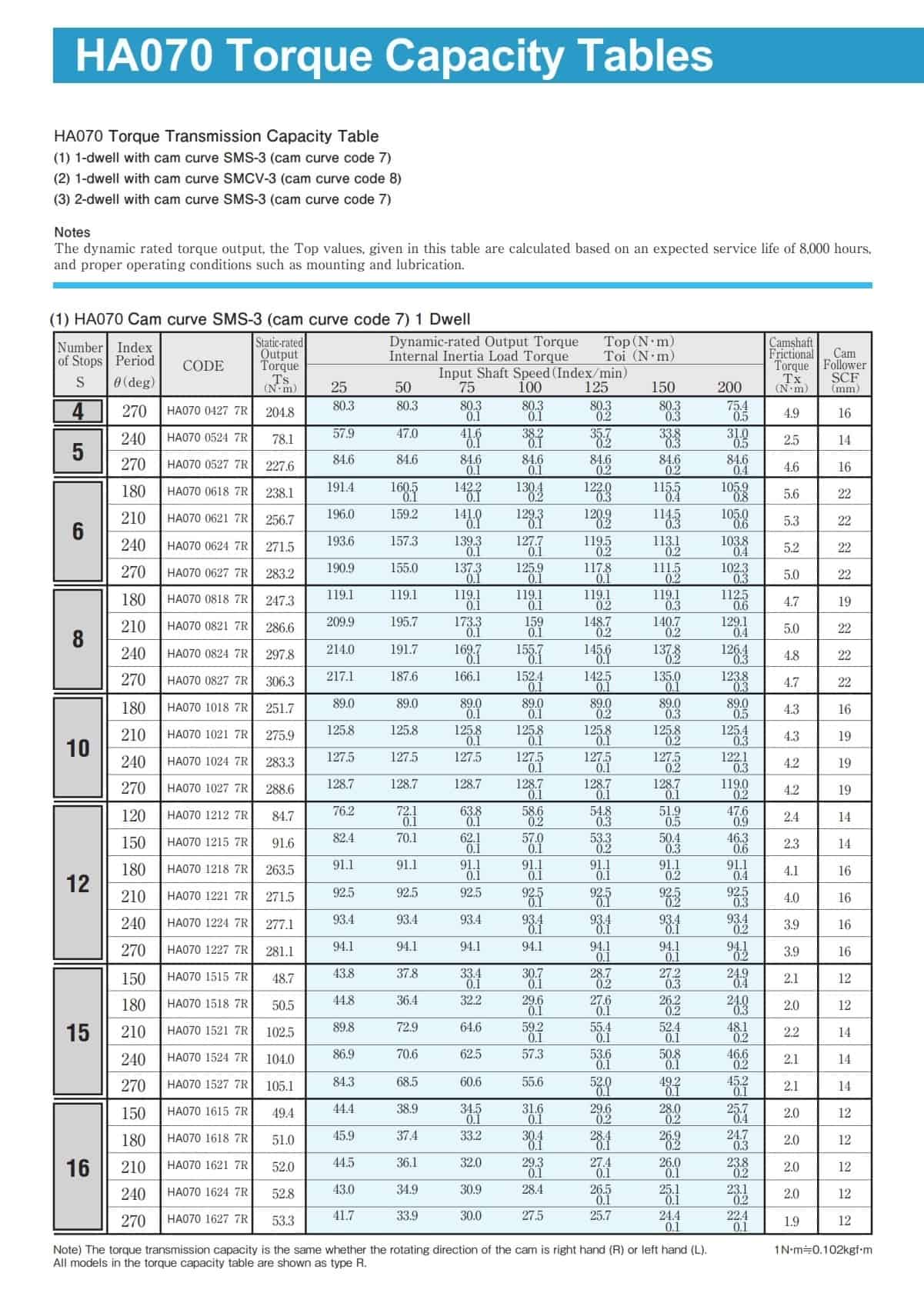

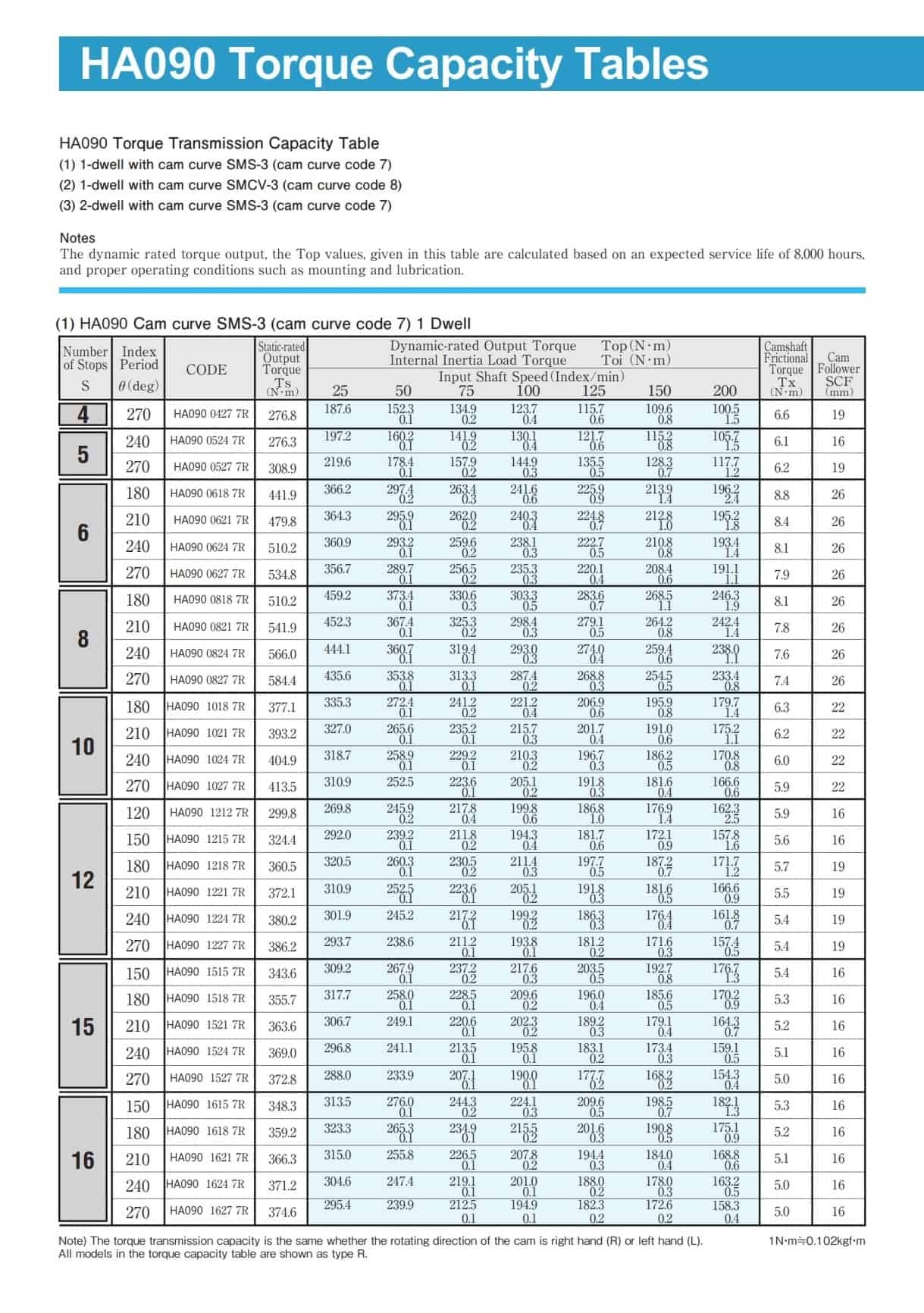

Below is the output torque for model HA070 and HA090 only.

Click here to download the full output torque table

Enquiry

How to order?

Step 1: Click here to download INDXIA HA Series Sizing Form (For Rotary Table Applications)

Step 2: Fill in the form completely based on your application

Step 3: Email a scanned copy to sshauto@singnet.com.sg

Step 4: Our sales team will contact you within 1-3 working days
